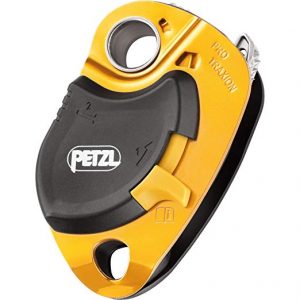

Pro Traxion Capture Pulley

Price: $ CALL




Description :
Loss-resistant pulley:
– allows a rope to be installed when the pulley is connected to the anchor
Well suited for hauling heavy loads:
– large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency
– side plate locks when loaded and prevents opening of the pulley during use
– lower connection point for creating different types of hauling systems
– toothed cam with self-cleaning slot optimizes performance under any conditions: frozen or dirty ropes…
– may be used as simple pulley by locking the cam in the raised position

Specifications :
Weight: 265 g
Certification(s): CE EN 567, NFPA 1983 Technical Use, EAC
Material(s): aluminum, stainless steel, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 13 mm
Sheave type: sealed ball bearings
Sheave diameter: 38 mm
Maximum working load: 2 x 2,5 = 5 kN
Breaking strength – pulley: 11 kN x 2 = 22 kN
Maximum working load – rope clamp: 2.5 kN
Breaking strength – rope clamp: 4 kN
Efficiency: 95 %
